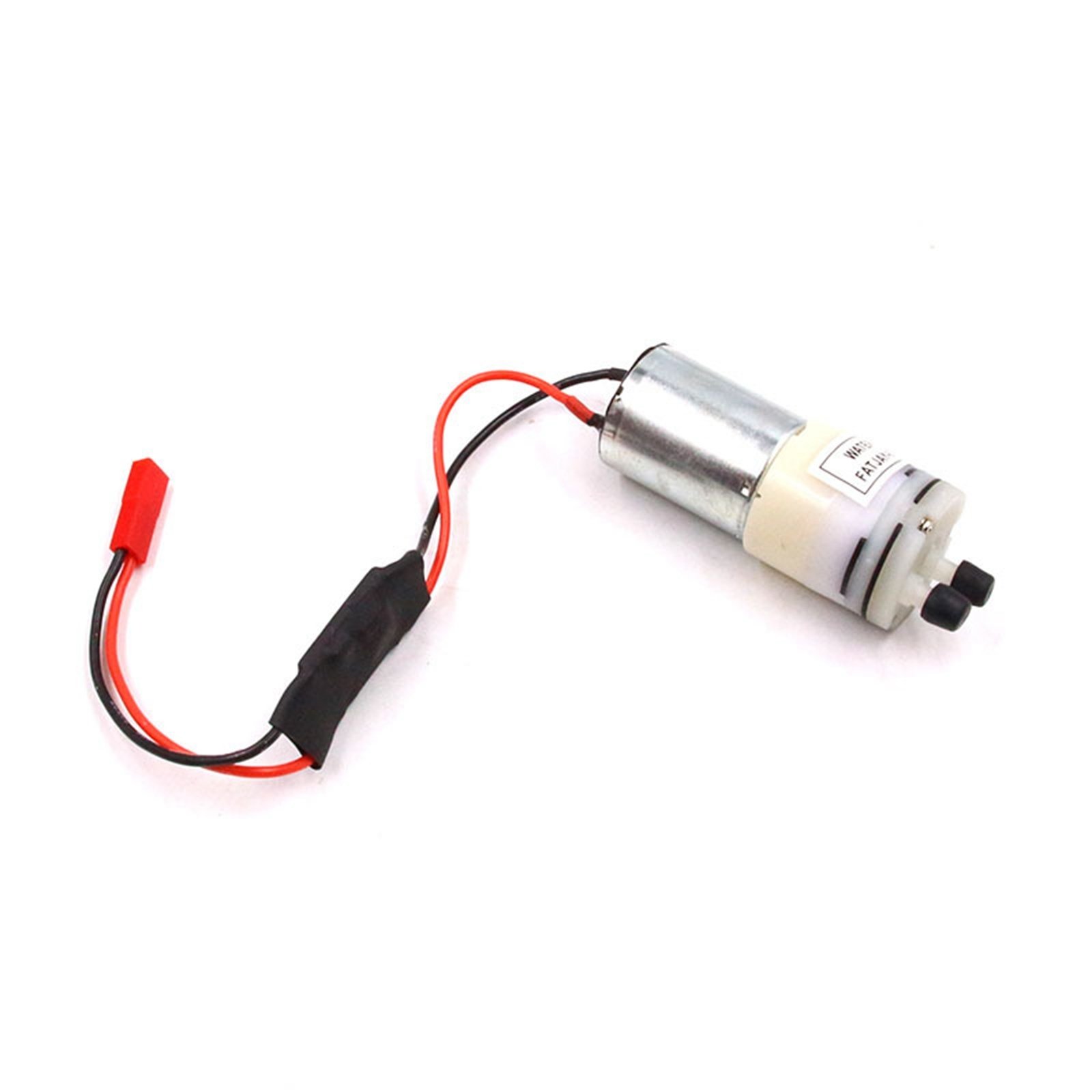

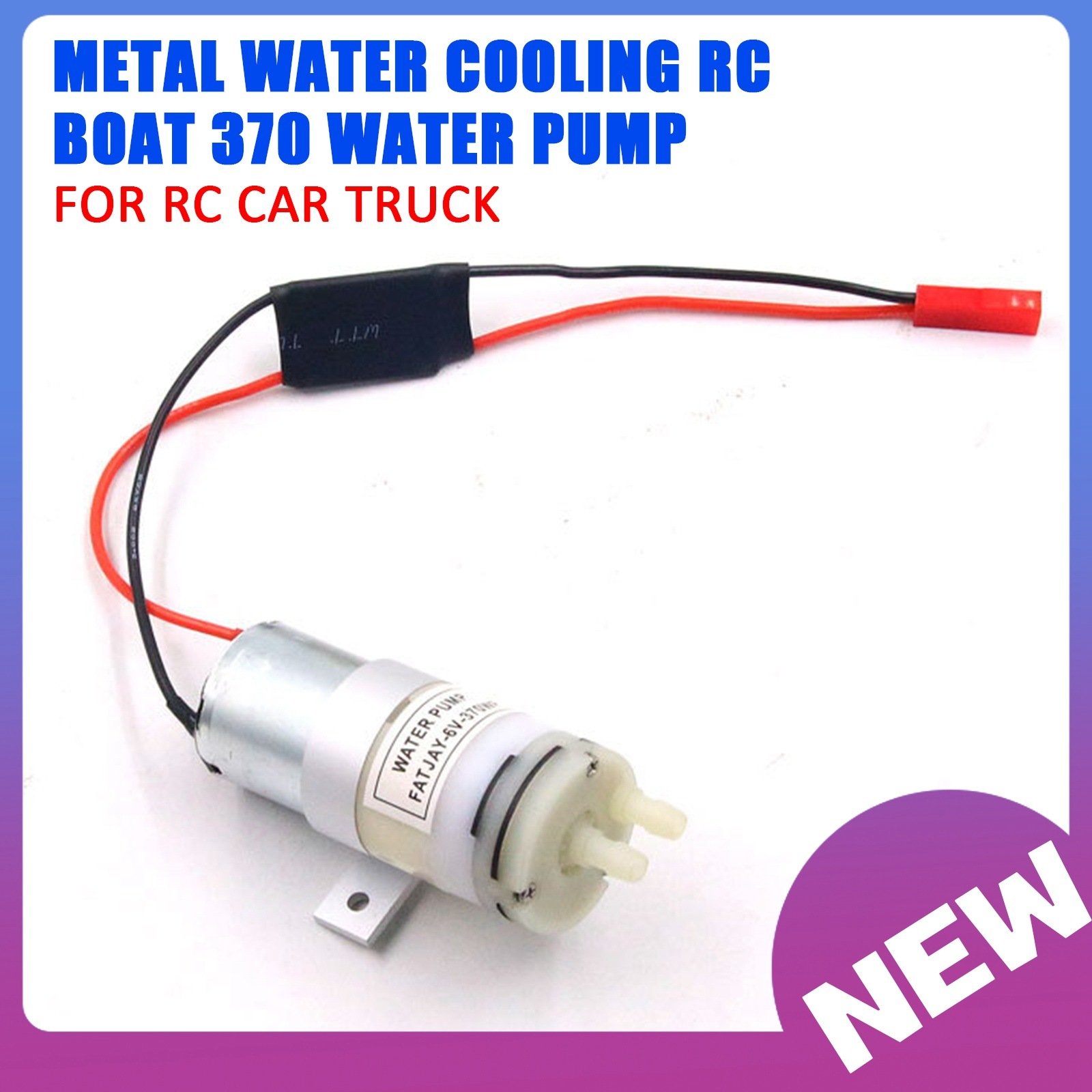

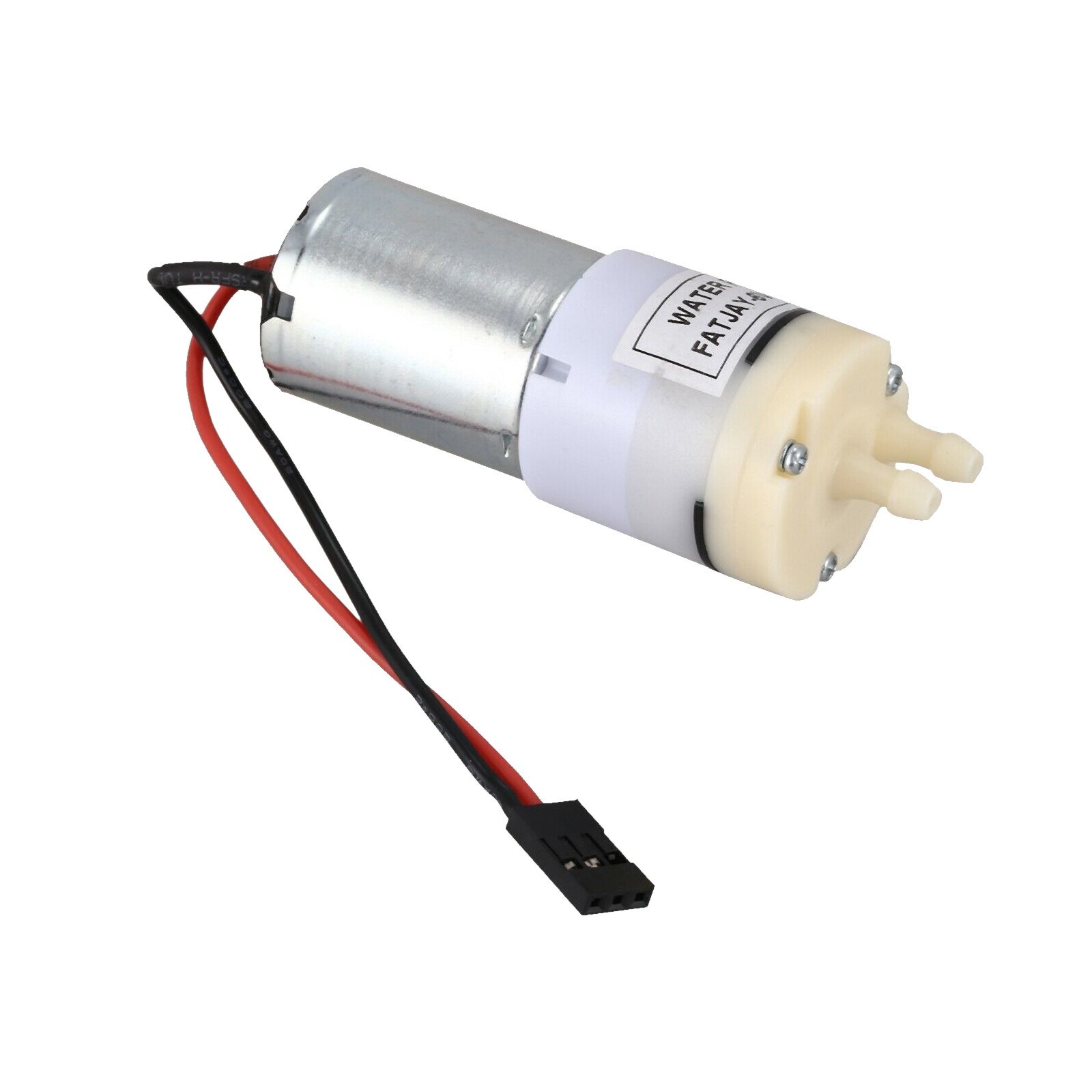

Metal Water Cooling RC Boat 370 Water Pump Waterproof for RC Car Truck Speedboats Models rc car accessories

Use range:The silent 370 water pump is suitable for installation on a remotely controlled boat that requires water cooling for the water-cooled motor and does have a suction rudder. The pumping voltage of the 370 motor is 3-6V, which can be directly plugged into the receiver for power. 6S (7-28V) battery 5V feed pump. Suitable for remotely controlled aircraft carriers, warships, battleships and other trains that require water cooling for electric motors and ESCs.
Connector description:JR plug: also known as DuPont plug, this connector is suitable for direct plug-in receiver use;Step-down module: Since the voltage used by the pump is 3-6V, if your power is taken from the receiver, and the battery used is greater than 2S, that is, 2S, 3S, 4S, 5S, 6S batteries, the voltage is Between 7-28V, you need to use this step-down module to reduce the step-down voltage to a 5V water supply pump.
Switch: Add a switch between the pump and the power supply. When the pump needs to work, turn on the switch. When you need to turn off the pump, turn off the switch.
Water pump working test:After actual testing, the water pump works continuously for 15 hours under the condition of 5V voltage, and the pump will work normally. The temperature will be hot, but it is in the normal range and will affect the use.
other instructions:Pump head outlet diameter: 3.95mm, center hole is water outlet out, eccentric hole is water inlet in.
Use voltage: rated 6V, use 3-6V
Voltage: 3 V Pumping flow: 1.1L / one minute Pumping flow: 300ml / one minute
Voltage: 6 V Pumping flow: 1.8L / one minute Pumping flow: 600ml / one minute
Pump size specifications:
Pump size: including pump head outlet length 72mm, motor outer diameter 24.4mm, pump head outer diameter 28mm
Pump length: 73mm (including 7.8mm inlet and outlet lengths)
Outer diam

PACKAGE INCLUDED : 1XJR plug waterproof water pump (WITHOUT Buck module),if you want Buck module, please contact customer services to get to link to pay for it )
